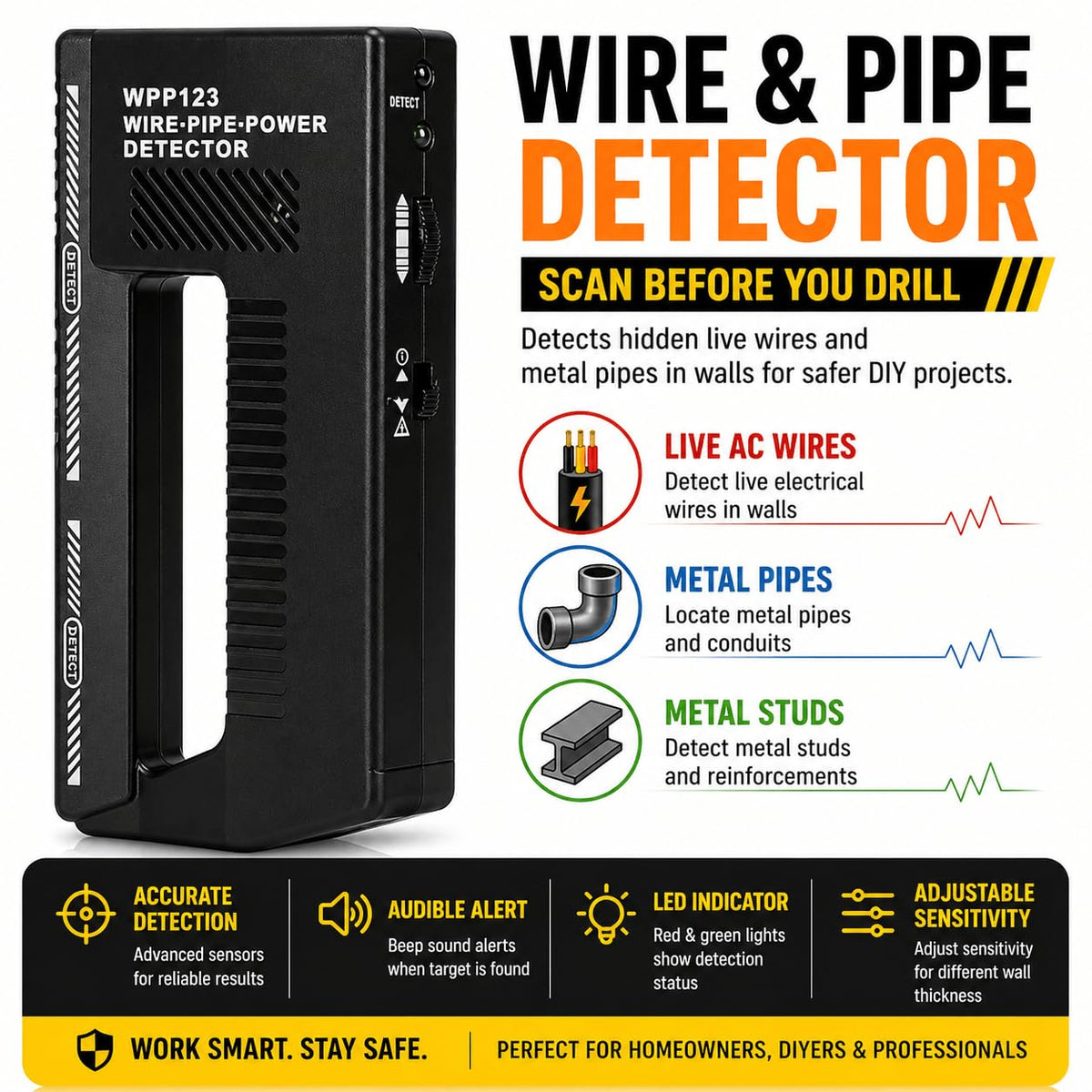

WPP123 Wire & Pipe Detector – Handheld Metal & Live AC Wire Scanner for Drywall with Sensitivity Control

Brand: Pithon Grips

Color: Black

Features:

• ⚡ DETECTS LIVE AC WIRES & METAL PIPES: Accurately locates hidden AC electrical wires (up to 30mm) and metal conduits/pipes (up to 24mm) behind drywall before drilling or cutting.
• 🎛️ REQUIRED AIR CALIBRATION: Must be calibrated in open air (away from walls) using the rotary tuner before every scan until audio/light signals turn off for precise detection.

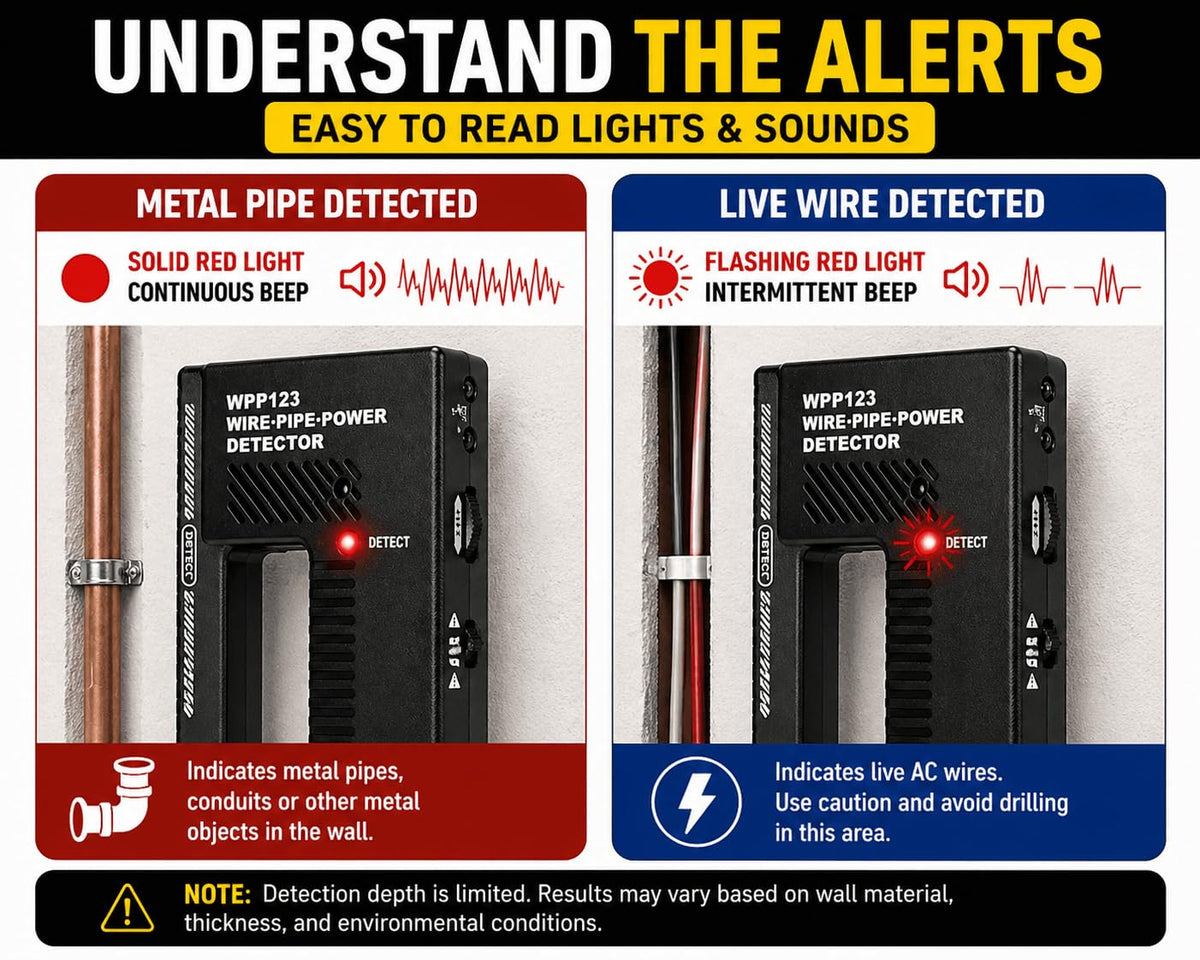

• 🔊 DUAL ALERT INDICATORS: Features a continuous LED light and steady tone for metal detection, and a flashing LED with intermittent beep tone for live AC electrical lines.

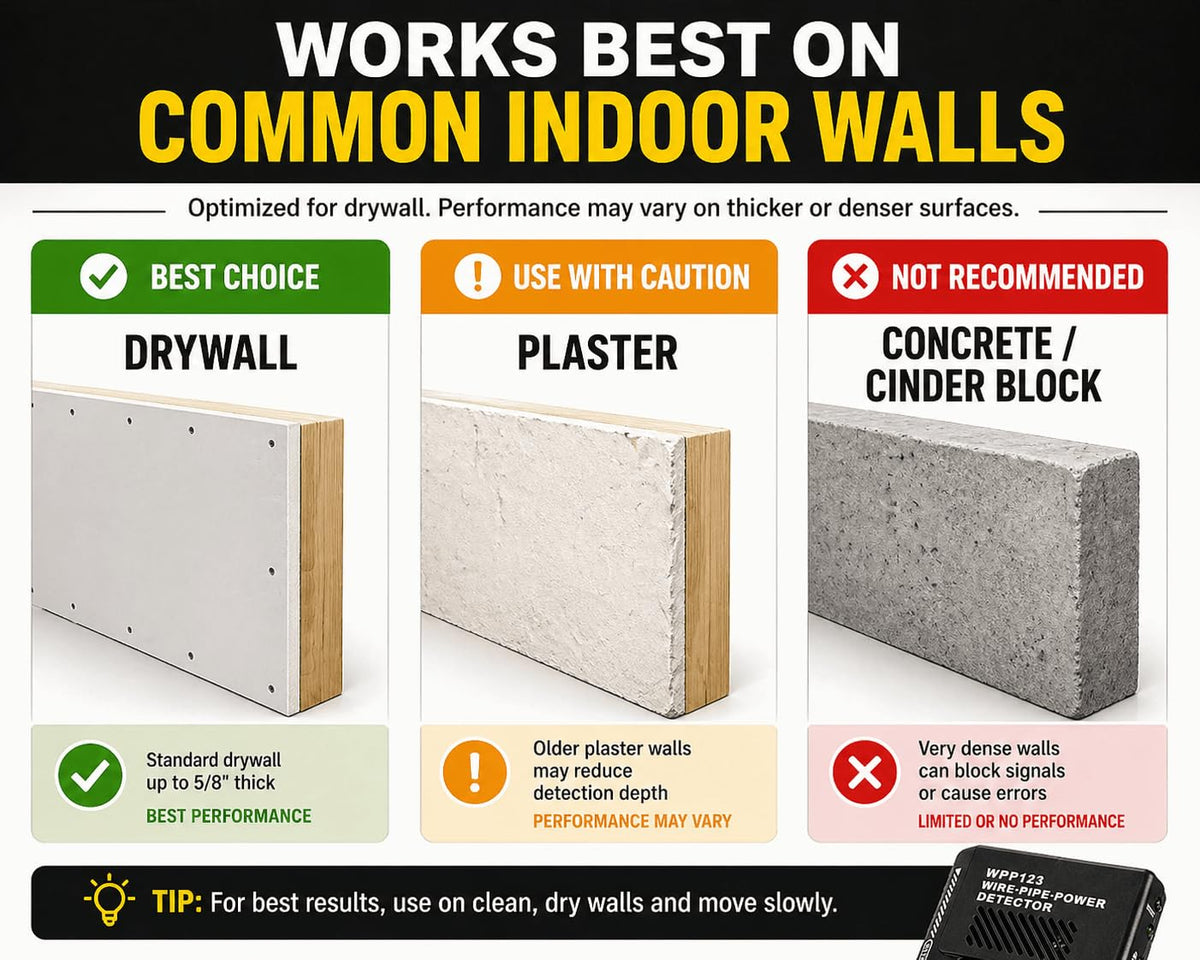

• 🏠 DRYWALL & INTERIOR USE ONLY: Specially engineered for standard hollow drywall and interior walls. Note: Will not detect AC voltage through metal pipes, metal-shielded walls, or thick concrete.

model number: 123wpp

Part Number: 123

Details: Scan Before You Drill — Stay Safe

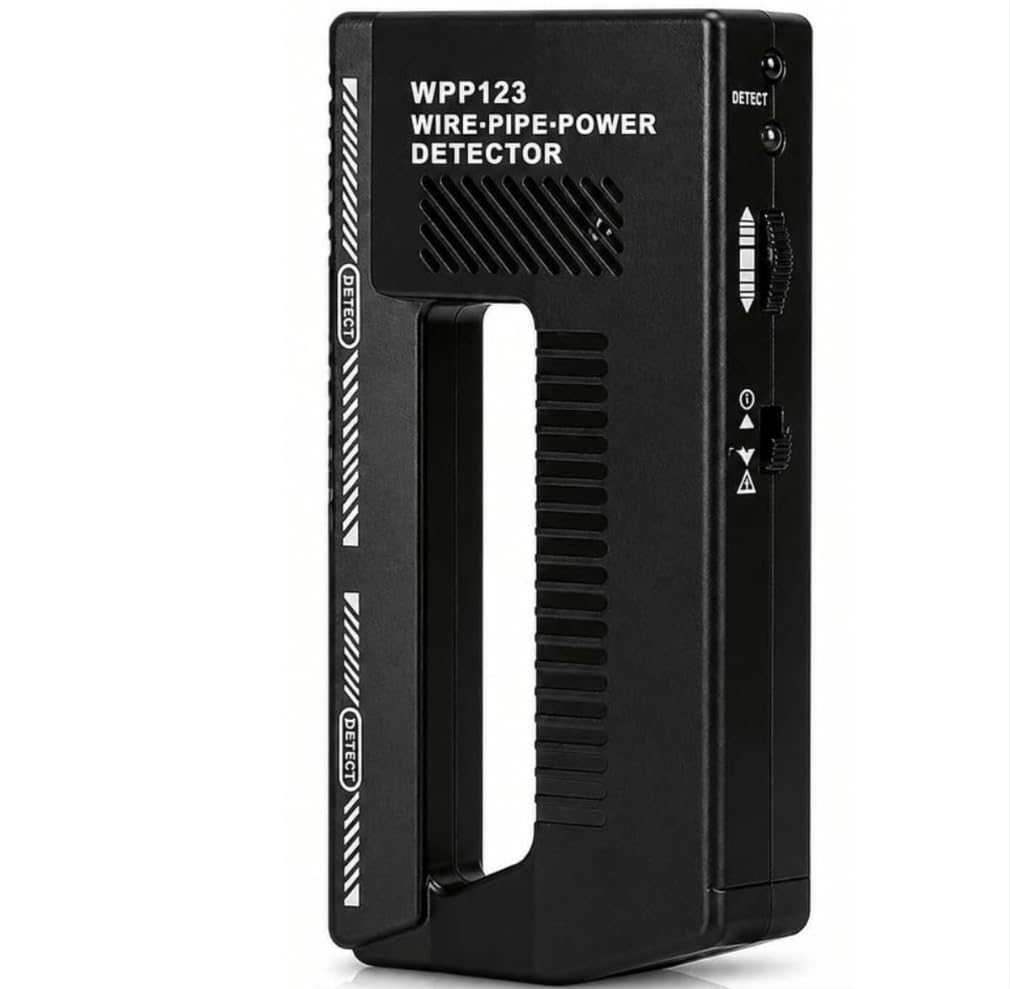

The WPP123 Wire & Pipe Detector helps you locate hidden electrical wires and metal pipes inside walls before drilling or mounting. Built for simple home use, it provides clear audio and visual alerts to help reduce the risk of hitting dangerous areas.

Key Features:
Detects live AC electrical wires
Identifies metal pipes and conduits
LED + sound alerts for detection feedback
Adjustable sensitivity for different surfaces

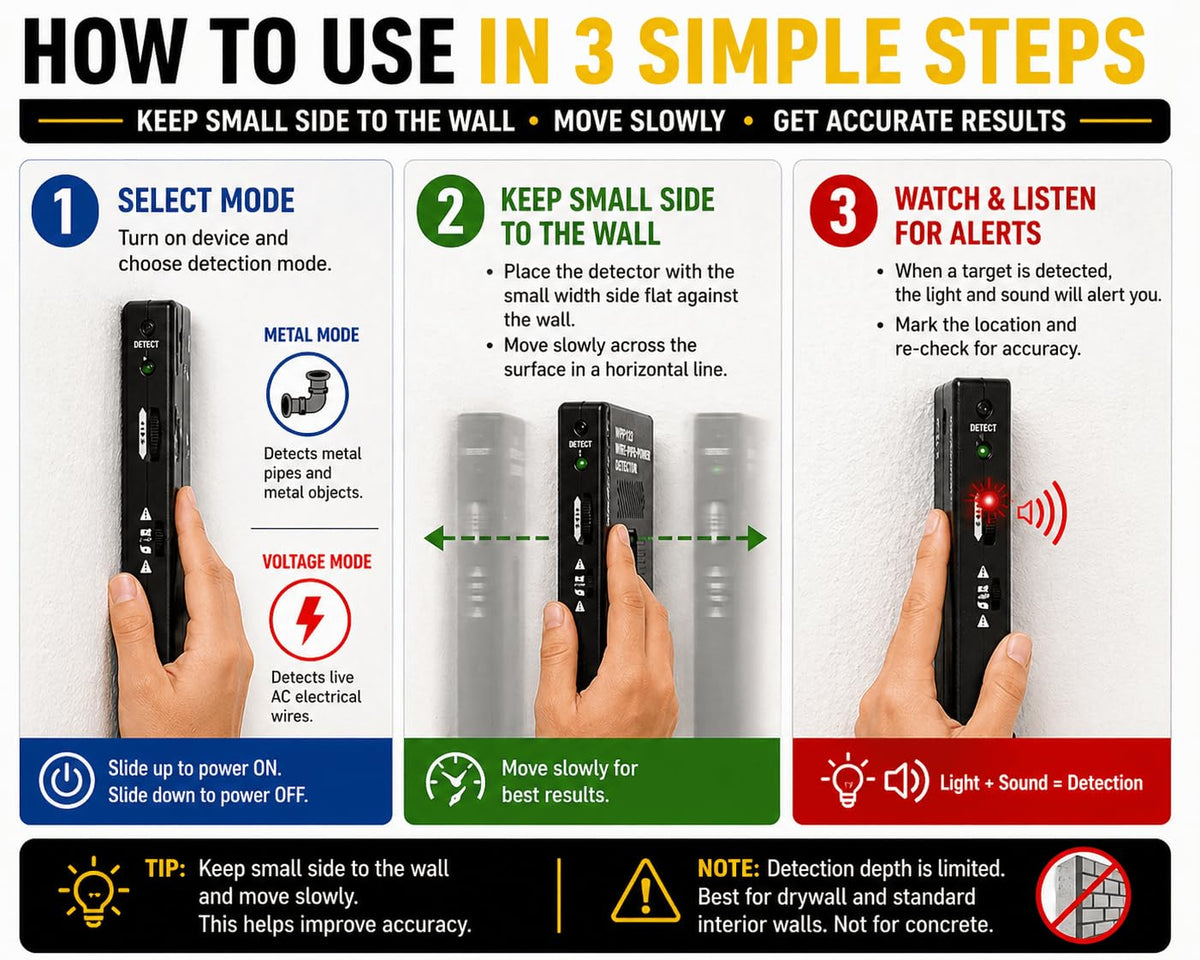

How to Use:
1. Turn on and select detection mode
2. Place device flat against the wall
3. Move slowly across the surface
4. Watch for LED signals and listen for alerts

⚠️ Before You Buy:
Designed for drywall and indoor use only
Detection depth is limited (~24–30mm)
Requires slow movement for accurate results
Not a stud finder or professional scanning tool

WPP123 Wall Scanner Metal Detector Instruction Manual & User Guide

QUICK START & CALIBRATION:
1. Turn on the device away from any wall or metal surface.
2. Select your desired mode (METAL or VOLTAGE) using the function switch.
3. Slowly turn the Power Tuner knob until the unit becomes silent and the light turns off. The device is now calibrated.
4. Place flat against the wall and move slowly from left to right.
Metal Mode: Solid light + continuous tone when metal is detected.
Voltage Mode: Flashing light + beep tone when live AC wire is detected.

TROUBLESHOOTING & FAQs:
Device won't turn on or no indicators: Check that a fresh 9V battery (6F22) is properly installed with correct polarity (+/-).
False positives or continuous beep: Re-calibrate the device! Turn the Power Tuner back until the sound and light stop completely before scanning. Avoid testing near strong magnetic fields or heavy electronic interference.
Inconsistent readings: Ensure you are scanning slowly and keeping the device flat against the wall. Note: Device cannot reliably detect AC voltage through metal pipes or metal-shielded walls.
Device not detecting: Confirm the mode switch is set to the correct setting (METAL vs VOLTAGE) for the object you are searching for.

EAN: 0199284418264

Package Dimensions: 8.9 x 5.1 x 1.1 inches
