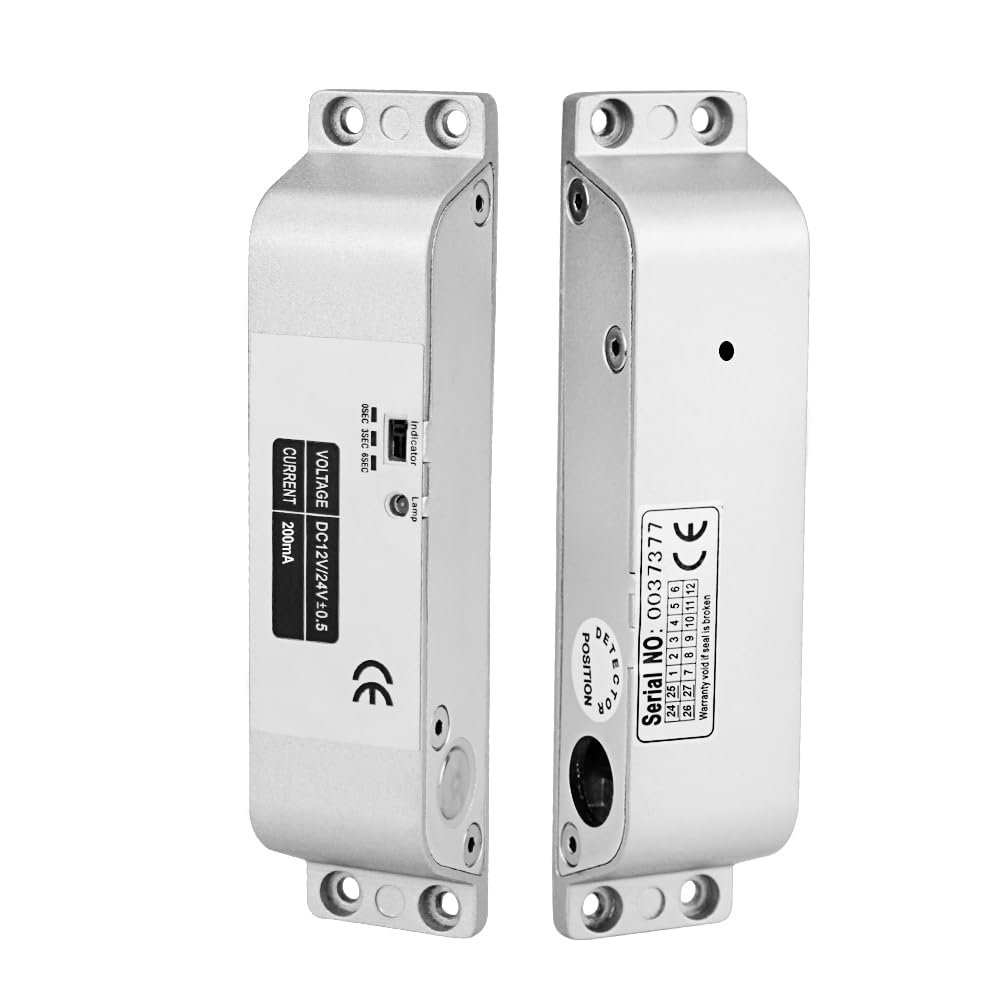

LIBO Smart Home Electric Drop Bolt Lock DC 12V Fail Safe NC Mode Electronic Door Lock for Access Control Security System with Time Delay

Brand: LIBO Smart Home

Color: Silver

Features:

• 1, NC Mode: Fail-safe type, unlocked when power off, locked when power on.

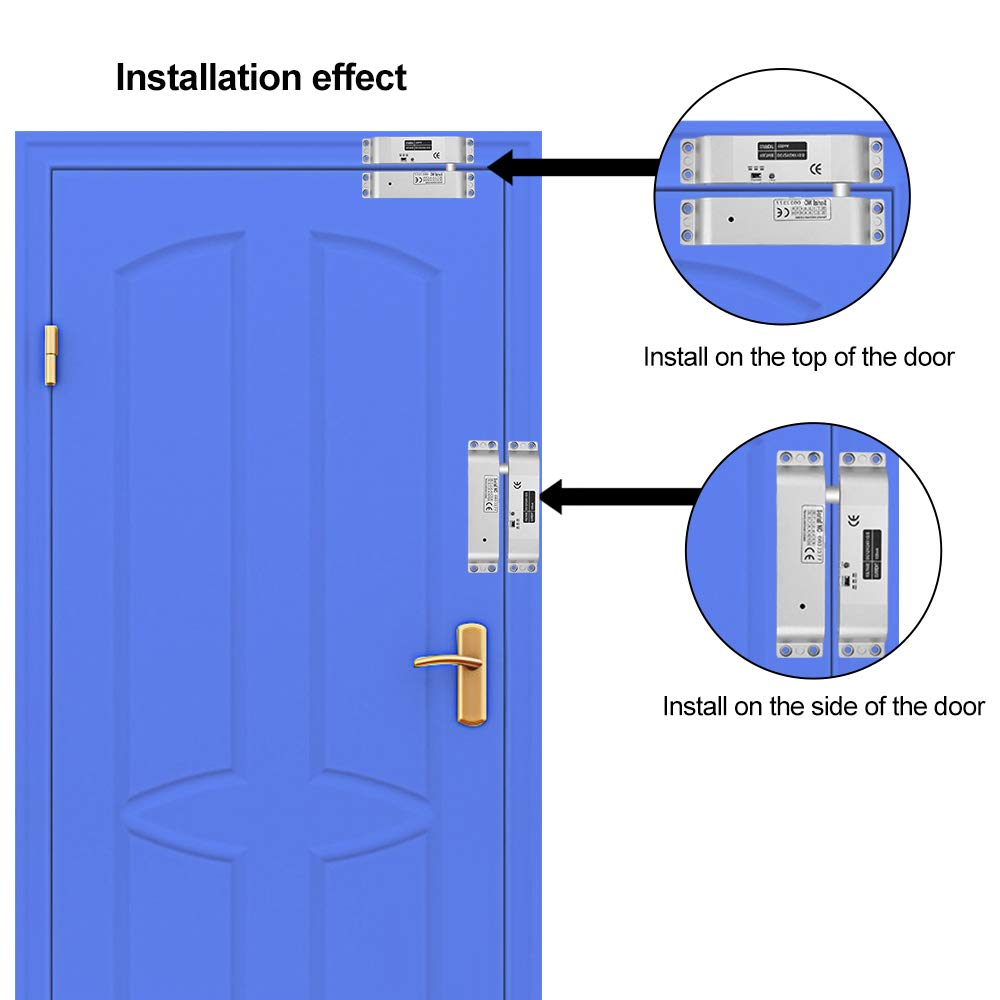

• 2, Installation: unfold install (surface mounted).

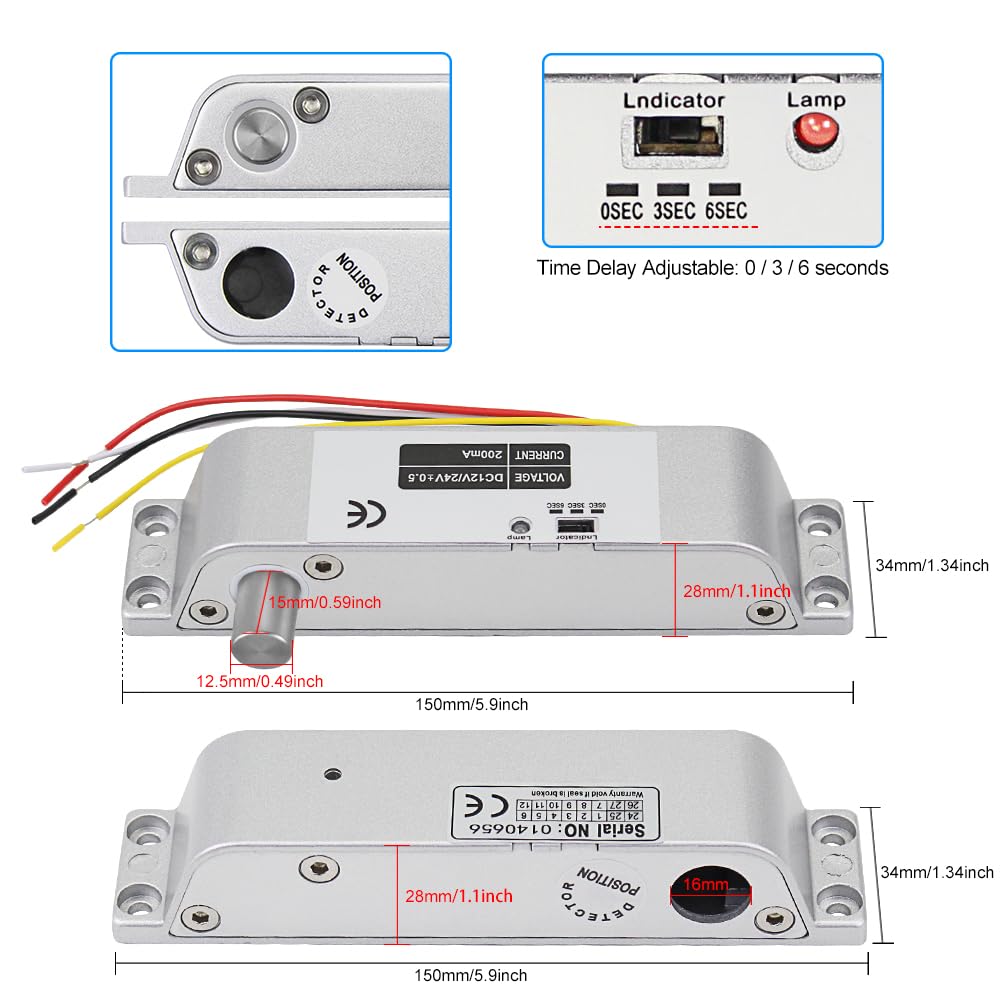

• 3, With time delay: 0s, 3s, 6s

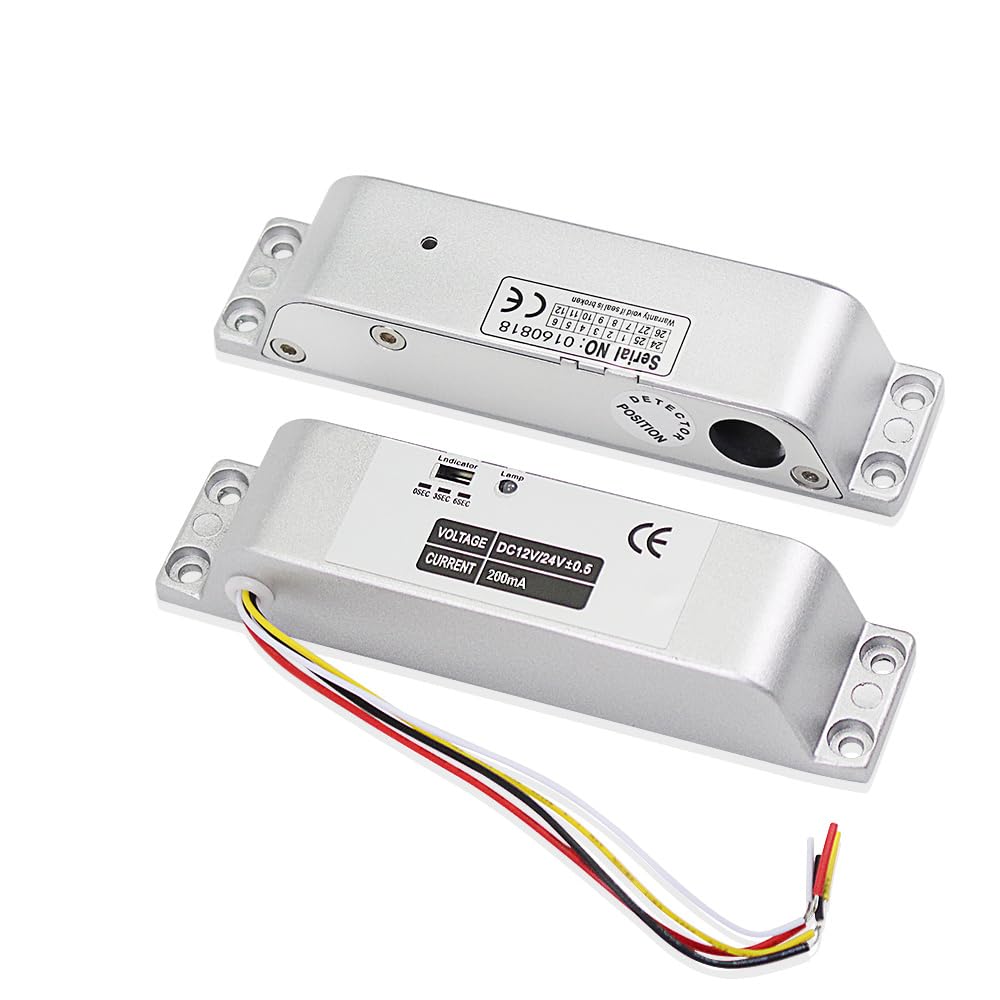

• 4, Wires: red to "NC", black to "GND". yellow line and white line are useless, don't need to be connected.
• 5, Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.

model number: L-XXS

Part Number: L-XXS

EAN: 0192687557844

Package Dimensions: 7.6 x 4.6 x 1.8 inches
