Decoder controller with digital Display, user addressable DMX interface-with easy switch settings and testing modes
Suitable for tape strip light RJ45 connection,used as the synchronous controller
This DMX decoder adopts advanced computer control IC chip，designed to convert the universal standard DMX512/1990 signal into analog signal to control our RGB strips light
Details: Technical Parameters:
Output: 4 channels
Working temperature: -20-60 ℃
Supply voltage: DC12～24V Optional
Output current: each channel 4A
Input : 4A each channel 12V: <192W, 24V: <384W
DMX512standard: DMX512/1990

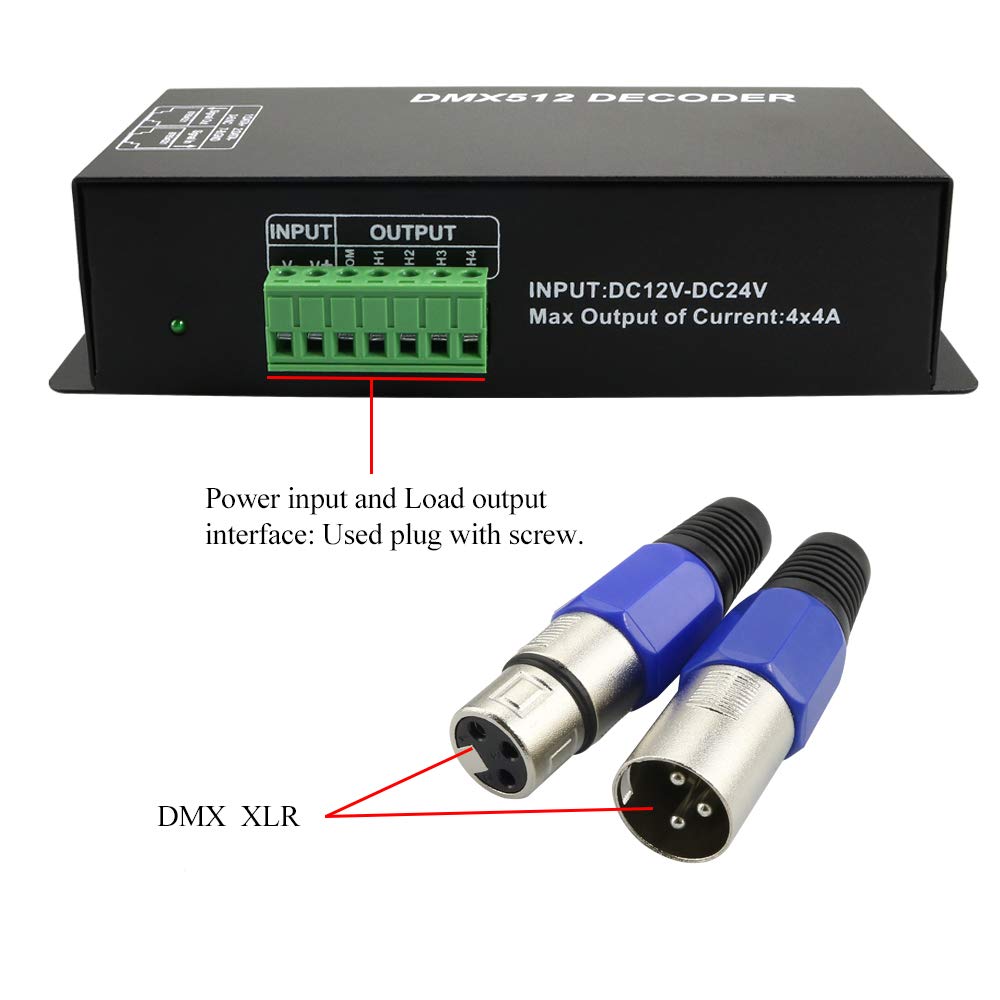

Accessories: 1 pair of XLR connectors
Package list:
1 * DMX decoder
1 * XLR connectors
1 * User Manual

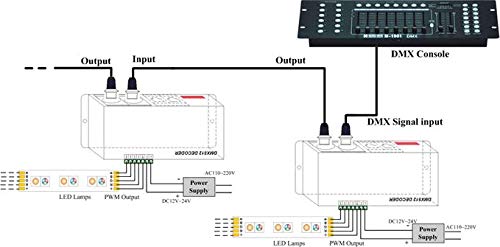

This DMX decoder can receive the international DMX - 512 standard digital control signals and converted into PWM controller signal to control the LED. It can be controlled by the DMX Console, and can connected with numbers of DMX Decoder to expand the outputs to realize all kinds of changing shows
DMX decoder can be used as the synchronous controller to controlled the LED in synchronous.

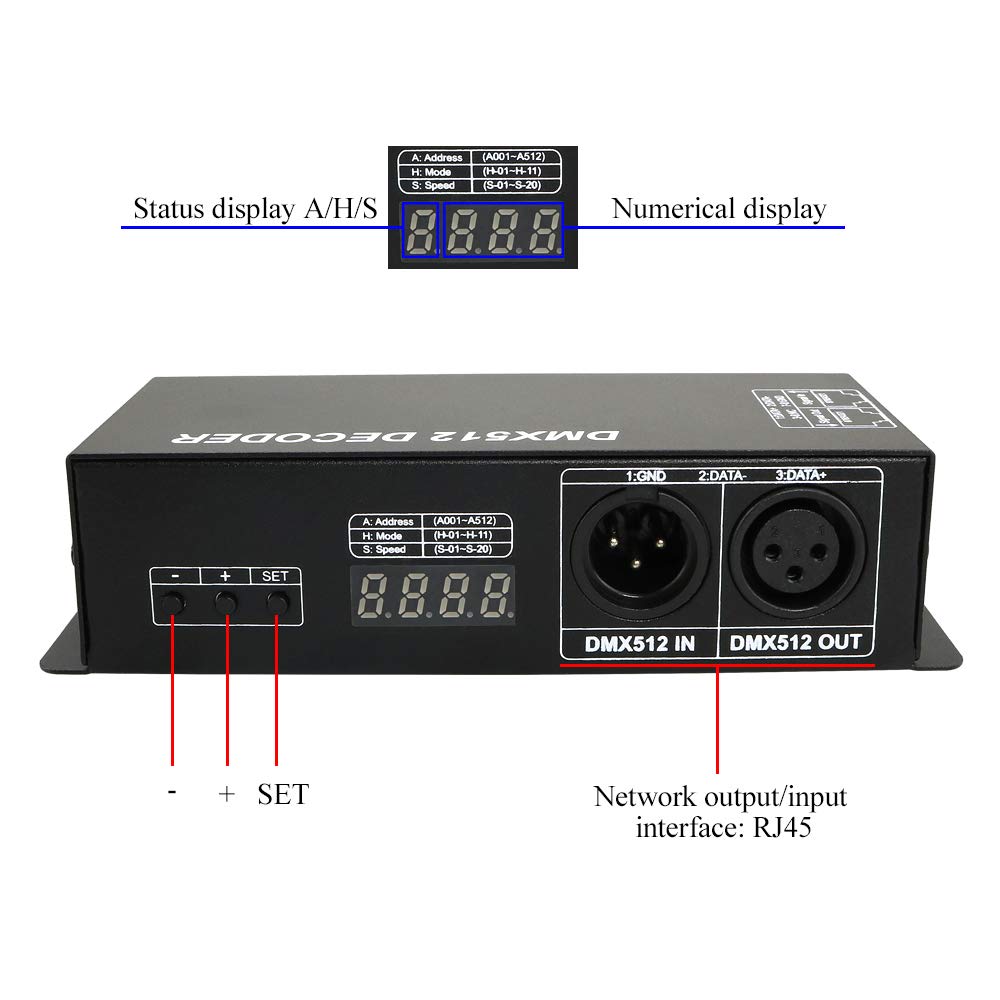

This decoder adopts the digital tube to show the address number, no longer need to go complex calculation of the address like dip switch
Application:
Stage lighting, Disco hall, Large literature performance, Gymnasium lighting, Temporary stage performance, City lighting system, TV station, Conference center, professional showplace, Topic park, Bar lighting and so on.
