24 Channel DMX Decoder Controller with Digital Display, Dimming Driver DMX512 LED Controller for RGB Strip Light, DC5V-24V 3A/CH

Brand: DXphita

Color: Black

Features:

• DMX SIGNAL: The DMX controller with an advanced computer control chip can receive the DMX-512 standard digital control signals and convert them into PWM controller signals

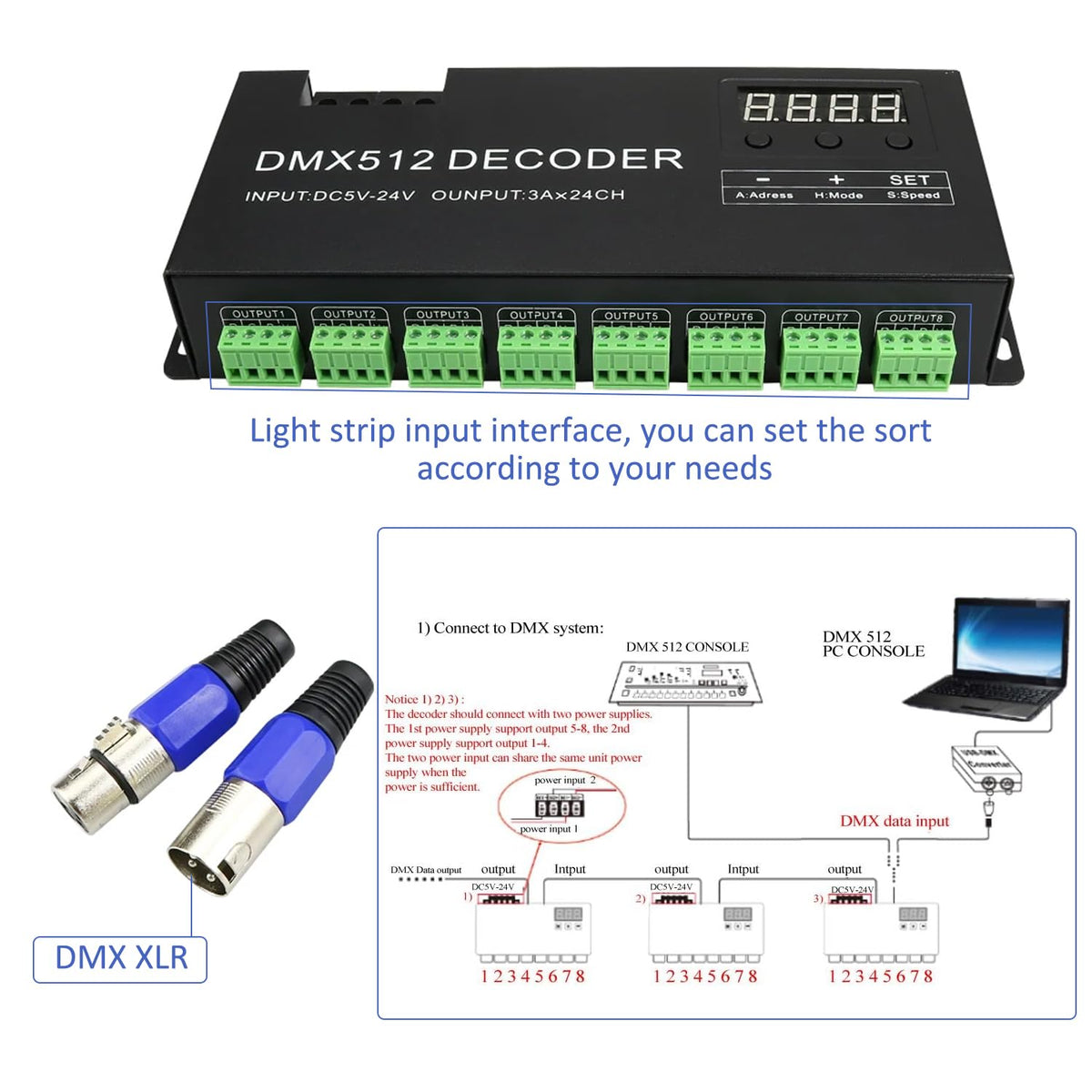

• DMX CONTROLLER: The DMX decoder can be controlled by a DMX console and can connect to multiple DMX decoders to increase output power
• SYNCHRONOUS CONTROL: The RGBW controller can be used as the synchronous controller to control the LED in synchronous mode, with 4096-level grayscale output per channel
• EASY TO USE: The DMX light controller adopts the digital tube to show the address number; no longer need to go through complex calculation of the address like a dip switch, convenient to operate
• Input voltage: DC5～24V. Output power: 5V: <360W 12V: <864W 24V: <1728W.

model number: 364-ZN9

Part Number: 24 Channel DMX Decoder Controller

Details: The 24-channel DMX512 decoding driver converts the universal DMX512/1990 digital signal into a PWM signal. This is controlled by a DMX512 console and has a grayscale output of 4096 levels per channel. Using unique programming technology creates spectacular color fades and smooth effects, making the LED colors more vibrant. It is perfect for stage lighting, clubs, bars, large-scale literary performances, gymnasium lighting, temporary stage performances, city lighting systems, TV stations, conference centers, professional show places, theme parks, and shopping mall lighting systems, among others.

Specification:
Input voltage: DC 5V-24V
Max load current: 3A/CH x 24 channels
Maximum output power: 360W (5V), 860W (12V), 1720W (24V).
Output scale level: 4096 levels
Input signal: DMX512/1990
Output DMX channels: 24 x CV PWM
RGBW: 4 channels per group, 6 groups in total

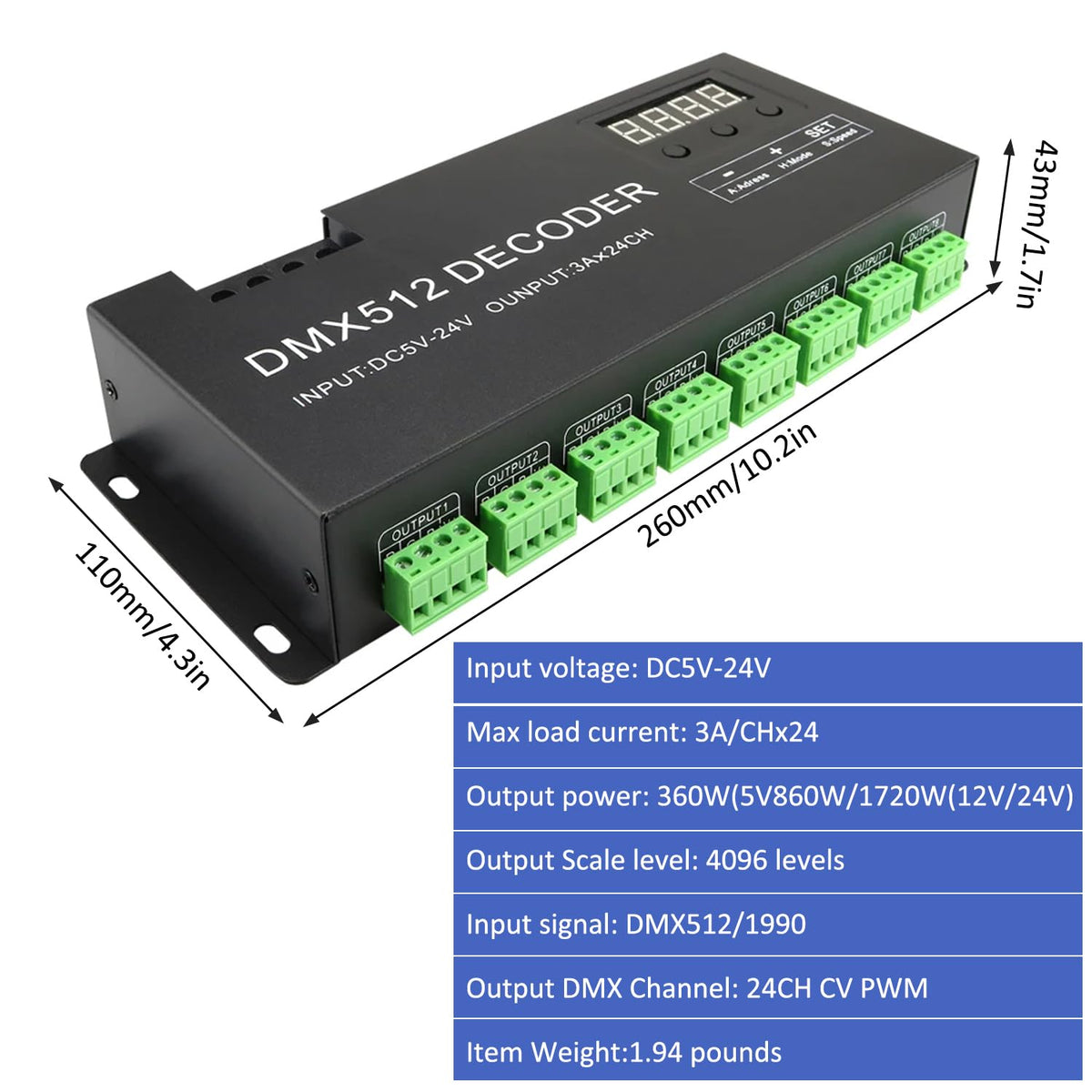

Dimensions: L260 x W110 x H43 (mm)
Weight (g): 920 g

Features:

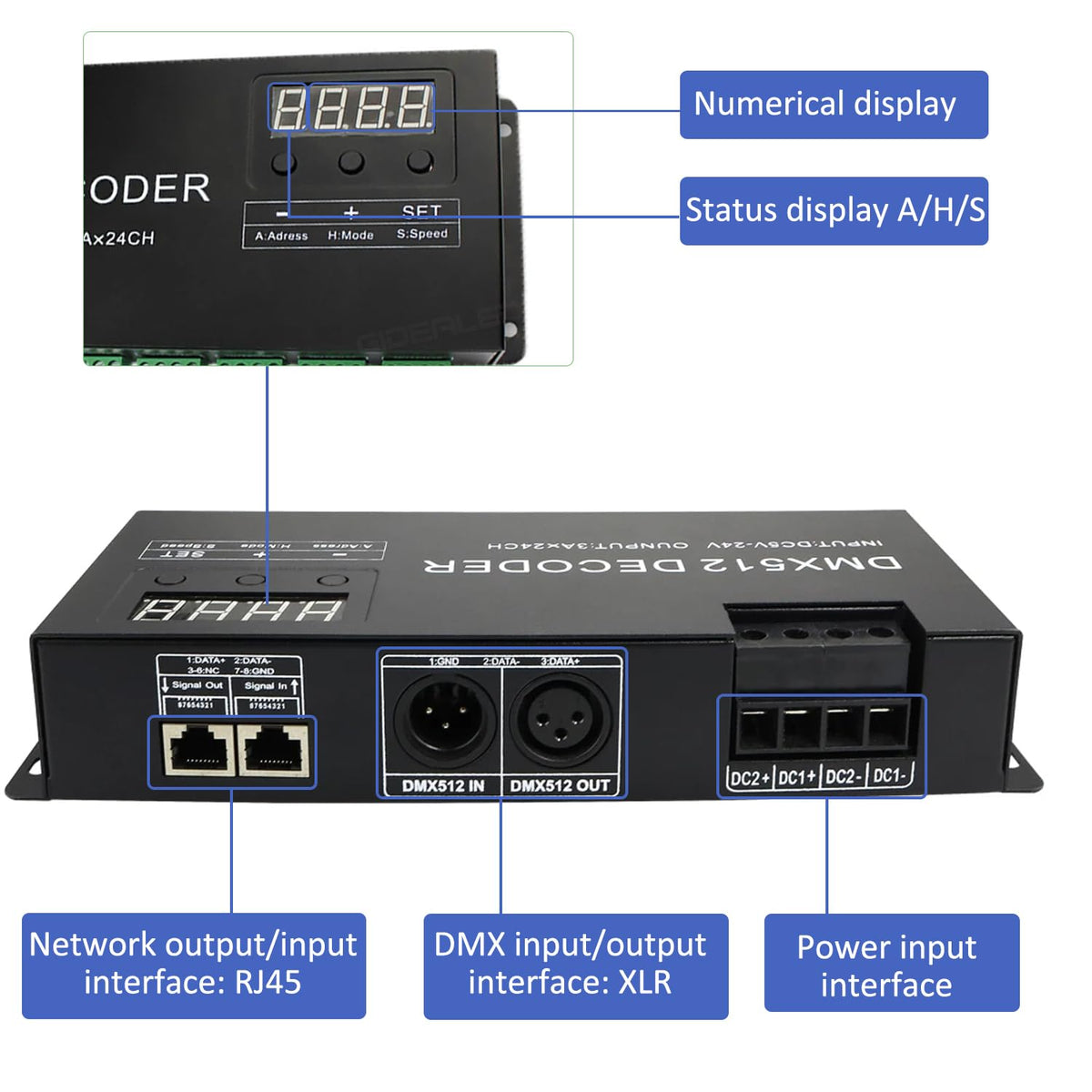

1. Universal standard DMX512 input protocol. 3-digital display shows DMX address code.
2. Working voltage: DC5V-DC24V
3. 24 output channels and 4096 gray steps per channel.
4. Multiple self-change modes and 10 speed levels.
5.
Push the two long limit springs to adjust the fan angle. When you need 360°, you can remove the springs.

Package Included:

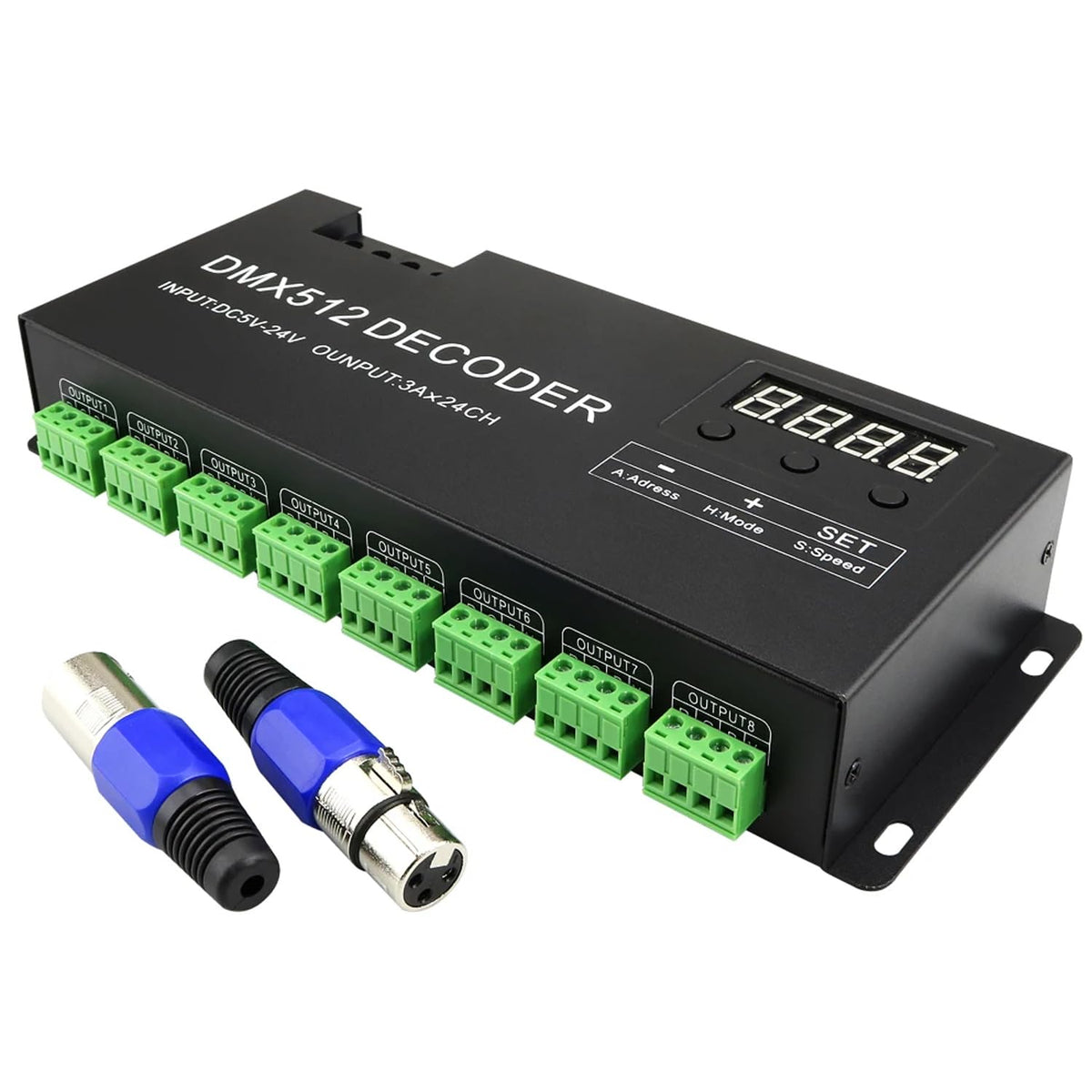

1*24-channel DMX512 Decoder

Package Dimensions: 10.5 x 4.3 x 2.2 inches
